Ranger Design Max Rack for Ford Transit Low Roof 148" Wheelbase - Single Model 1840-FTL
Ranger Design Max Rack for Ford Transit Low Roof 148" Wheelbase / 148" Extended Wheelbase - Single Model 1840-FTL

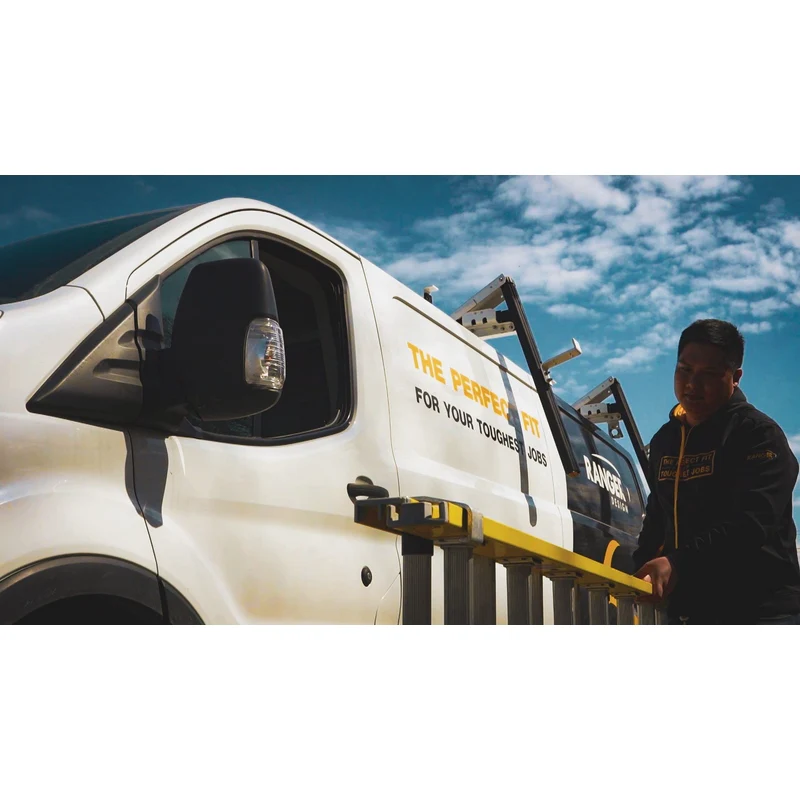

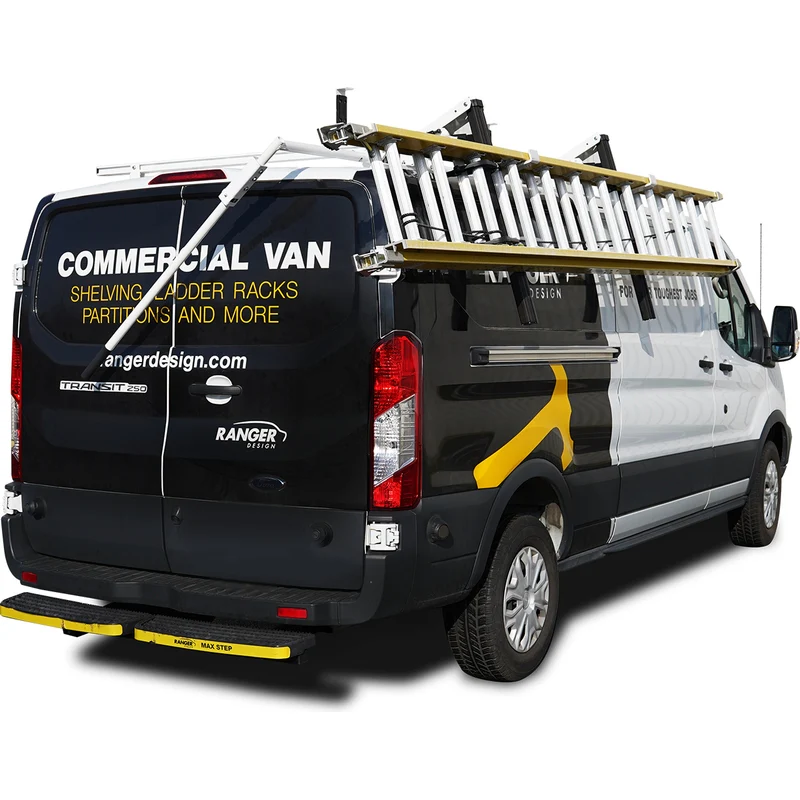

The Max Rack Low Roof – Single Drop-Down is designed for low-roof vans and provides safe, ground-level access to a single ladder. The drop-down mechanism lowers the ladder within easy reach, reducing lifting strain and improving daily efficiency. Built with vehicle-specific fitment, this rack features interlocking, plastic-coated ladder hooks to prevent wear, along with a secure wind-latch locking system to keep ladders firmly in place during transit.
- Single Ladder Drop-Down System - Lowers one ladder to ground level for quick, easy access from low-roof vans.
- Effort-Reducing Design - Engineered to minimize the force required to raise and lower the ladder.
- Safe Ladder Storage - Aluminum interlocking ladder hooks with plastic coating protect ladder rails and secure the load.
- Wind-Latch Locking Mechanism - Prevents accidental deployment and includes a padlock hole for added security.
- Integrated Locking Handle - Locks securely in place during transit for maximum safety.
- Vehicle-Specific Fitment - Individual models are tailored to each vehicle and may vary accordingly.
Installation Instructions
Specifications
| Weight | 85.3 lbs |
| Width | 76.53" |
| Length | 120.32" |
| Height | 15.24" |
| Install Time (hrs) | 2 |
| Application | Exterior |
| Composition | Aluminum |
| Finish | Powder Coated White |
| Quickship | Yes |
| Weight Capacity | 480 lbs |
