Mile Marker SEC9.5 9500 LB. Winch With Synthetic Rope Model 76-53246BW
Mile Marker SEC9.5 9500 LB. Winch With Synthetic Rope Model 76-53246BW
The Mile Marker SEC95 premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. The Synthetic Rope version comes with a 3/8” x 92’ synthetic rope, an anodized aluminum hawse fairlead, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12′ cord.
Features:
• 4.9 HP Series Wound Motor
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Fast Line Speeds
• Submersible, 400 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless Steel Fasteners
• 92′ Synthetic Rope
• Aluminum Hawse Fairlead
• Waterproof

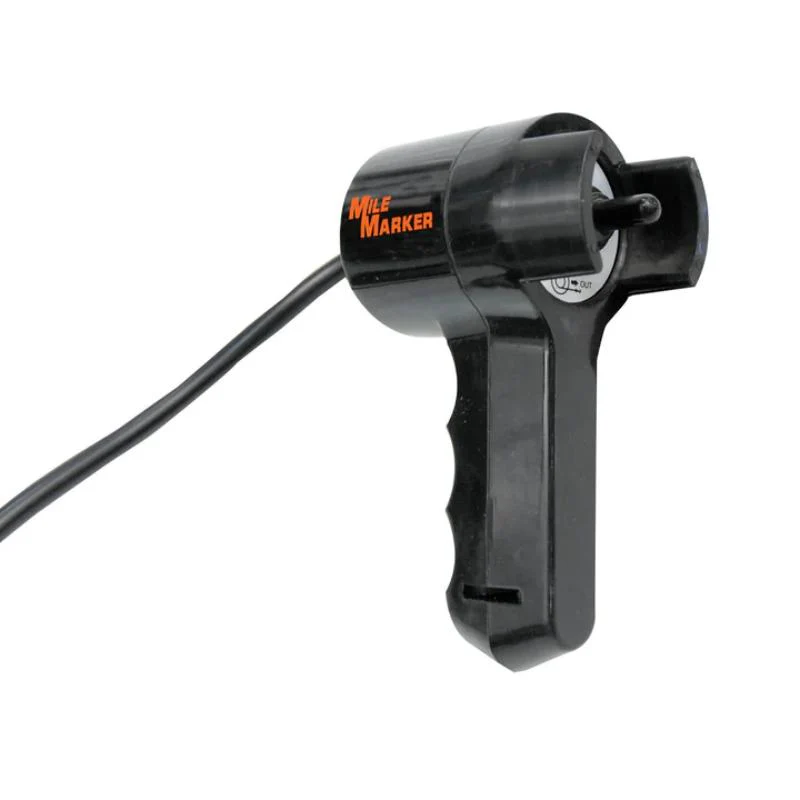

• Handheld Remote control
Specifications & Performance
| Part Number | 76-53246BW |
| Rated line pull | 9500 lbs (4309 Kgs) |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 210:1 |
| Motor | Series Wound, 4.9 hp (3.6 kw), 12V (24V available, call to order) |
| Remote Control | Power In, Power Out Remote, 12’ |
| Dimensions (LxWxH) | 22.25” X 6.25” X 8.00” (565.2 mm X 158.8 mm X 203.2 mm) |
| Synthetic Rope | 3/8” X 92’ (9.53 mm X 28 m) |
| Drum Size | 2.5” X 9” (63.5 mm X 228.6 mm) |
| Net weight | 67 lbs. (30.3 kg) |
| Bolt Pattern | 4 Bolt Pattern, 4.5” X 10”, (114.3 mm X 254 mm) |
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 26 | 7.9 | 95 |
| 2000 | 907 | 20 | 6 | 175 |
| 4000 | 1814 | 14 | 4.3 | 240 |
| 6000 | 2722 | 12 | 3.8 | 295 |
| 8000 | 3629 | 10.8 | 3.3 | 370 |
Original: $899.00
-70%$899.00
$269.70
Description
Mile Marker SEC9.5 9500 LB. Winch With Synthetic Rope Model 76-53246BW
The Mile Marker SEC95 premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. The Synthetic Rope version comes with a 3/8” x 92’ synthetic rope, an anodized aluminum hawse fairlead, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12′ cord.
Features:
• 4.9 HP Series Wound Motor
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Fast Line Speeds
• Submersible, 400 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless Steel Fasteners
• 92′ Synthetic Rope
• Aluminum Hawse Fairlead
• Waterproof
• Handheld Remote control
Specifications & Performance
| Part Number | 76-53246BW |
| Rated line pull | 9500 lbs (4309 Kgs) |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 210:1 |
| Motor | Series Wound, 4.9 hp (3.6 kw), 12V (24V available, call to order) |
| Remote Control | Power In, Power Out Remote, 12’ |
| Dimensions (LxWxH) | 22.25” X 6.25” X 8.00” (565.2 mm X 158.8 mm X 203.2 mm) |
| Synthetic Rope | 3/8” X 92’ (9.53 mm X 28 m) |
| Drum Size | 2.5” X 9” (63.5 mm X 228.6 mm) |
| Net weight | 67 lbs. (30.3 kg) |
| Bolt Pattern | 4 Bolt Pattern, 4.5” X 10”, (114.3 mm X 254 mm) |
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 26 | 7.9 | 95 |
| 2000 | 907 | 20 | 6 | 175 |
| 4000 | 1814 | 14 | 4.3 | 240 |
| 6000 | 2722 | 12 | 3.8 | 295 |
| 8000 | 3629 | 10.8 | 3.3 | 370 |
