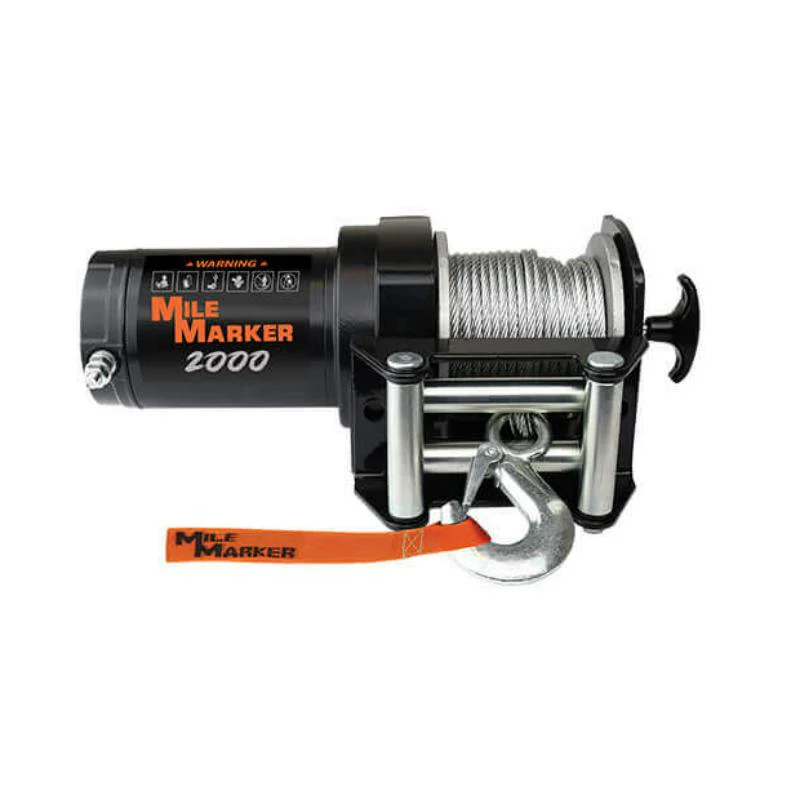

Mile Marker 2000 LB. Utility Winch Model 76-50200
Mile Marker 2000 LB. Utility Winch Model 76-50200
Weighing in at only 13 pounds, the Mile Marker 2000 lb. utility and trailer electric winch boast an impressive 2000 pounds of pulling capacity and includes a 5/23” x 50’ Steel Cable, a roller fairlead, a hook, and wireless remote control for versatility and convenience. With the all-metal, 2-stage planetary gear train, high-output permanent magnet motor, automatic load-holding dynamic brake, and fast line speeds, the 2000 lb. utility and trailer electric winch provides durability and reliability you can depend on from all Mile Marker winch products.
Features:
• High Output Motor
• Automatic Load Holding Dynamic Break
• Fast Line Speeds
• Wireless Remote Control
• 50′ Steel Cable
• Roller Fairlead
• All Metal Planetary Gearing
• Free Spooling
Specifications & Performance
| Part Numbers | 76-50200 |
| Rated line pull (Single Line) | 2000 lbs (907 kg) |
| Gear Ratio | 163:1 |
| Motor (Permanent Magnet) | 1.9 hp (1.4 kw), 12 V |
| Drum Size | 1.26” X 2.8” (32 mm X 72 mm) |
| Steel Cable | 5/23″ X 49′ (4 mm x 15 m) |
| Dimensions (LxWxH) | 11.25” X 4.5” X 4.23” (285.5 mm X 113 mm X 107.5 mm) |
| Mounting Bolt Pattern | 1.89″ X 3″ (48 mm X 76 mm) |
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 14 | 4.3 | 14 |
| 1000 | 454 | 9.0 | 2.7 | 60 |
| 1500 | 680 | 7.5 | 2.3 | 90 |
| 2000 | 908 | 5.9 | 1.8 | 115 |
Original: $149.00
-70%$149.00
$44.70
Description
Mile Marker 2000 LB. Utility Winch Model 76-50200
Weighing in at only 13 pounds, the Mile Marker 2000 lb. utility and trailer electric winch boast an impressive 2000 pounds of pulling capacity and includes a 5/23” x 50’ Steel Cable, a roller fairlead, a hook, and wireless remote control for versatility and convenience. With the all-metal, 2-stage planetary gear train, high-output permanent magnet motor, automatic load-holding dynamic brake, and fast line speeds, the 2000 lb. utility and trailer electric winch provides durability and reliability you can depend on from all Mile Marker winch products.
Features:
• High Output Motor
• Automatic Load Holding Dynamic Break
• Fast Line Speeds
• Wireless Remote Control
• 50′ Steel Cable
• Roller Fairlead
• All Metal Planetary Gearing
• Free Spooling
Specifications & Performance
| Part Numbers | 76-50200 |
| Rated line pull (Single Line) | 2000 lbs (907 kg) |
| Gear Ratio | 163:1 |
| Motor (Permanent Magnet) | 1.9 hp (1.4 kw), 12 V |
| Drum Size | 1.26” X 2.8” (32 mm X 72 mm) |
| Steel Cable | 5/23″ X 49′ (4 mm x 15 m) |
| Dimensions (LxWxH) | 11.25” X 4.5” X 4.23” (285.5 mm X 113 mm X 107.5 mm) |
| Mounting Bolt Pattern | 1.89″ X 3″ (48 mm X 76 mm) |
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 14 | 4.3 | 14 |
| 1000 | 454 | 9.0 | 2.7 | 60 |
| 1500 | 680 | 7.5 | 2.3 | 90 |
| 2000 | 908 | 5.9 | 1.8 | 115 |
