CTech VanPro Package RPEXT2 Model RP-EXT-PRO-2

CTech VanPro Package RPEXT2 Model RP-EXT-PRO-2

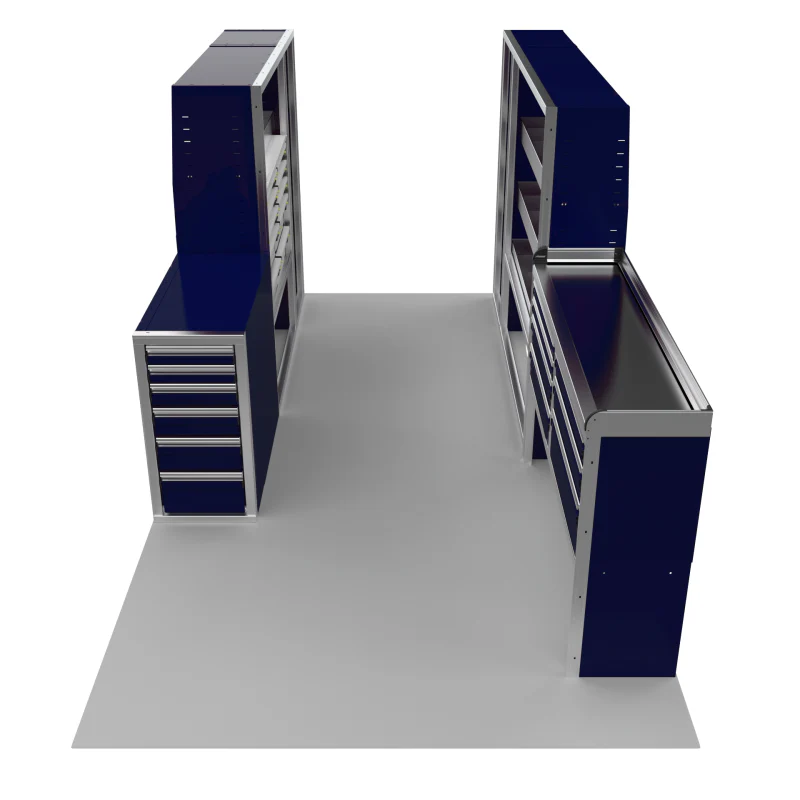

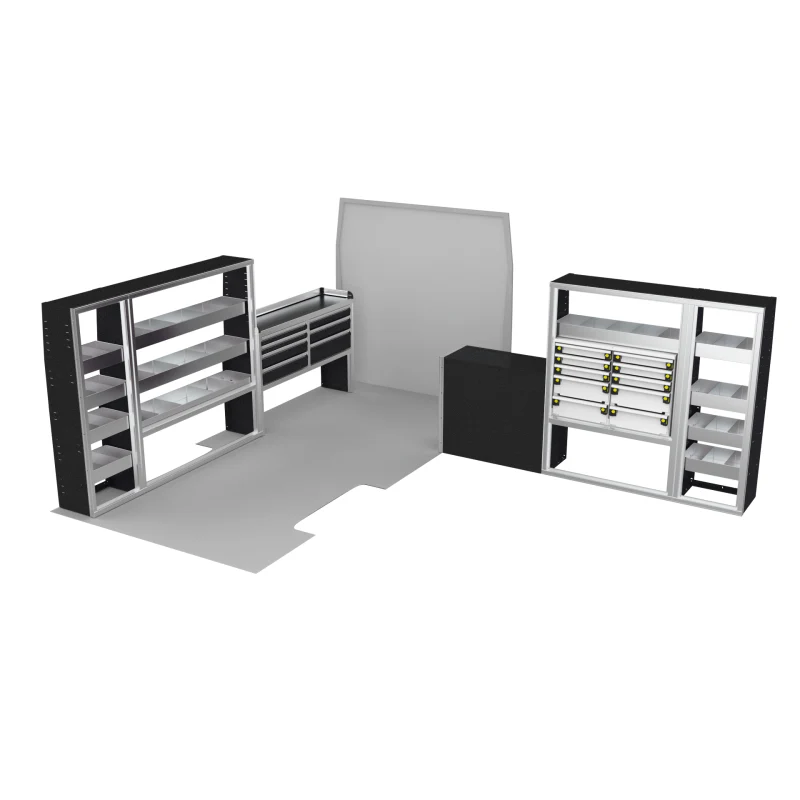

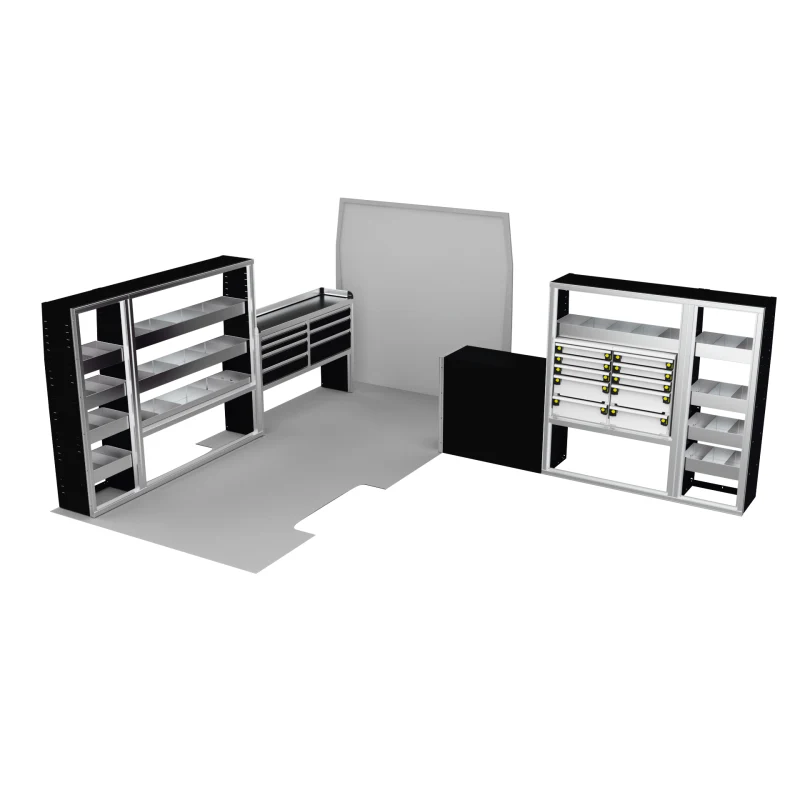

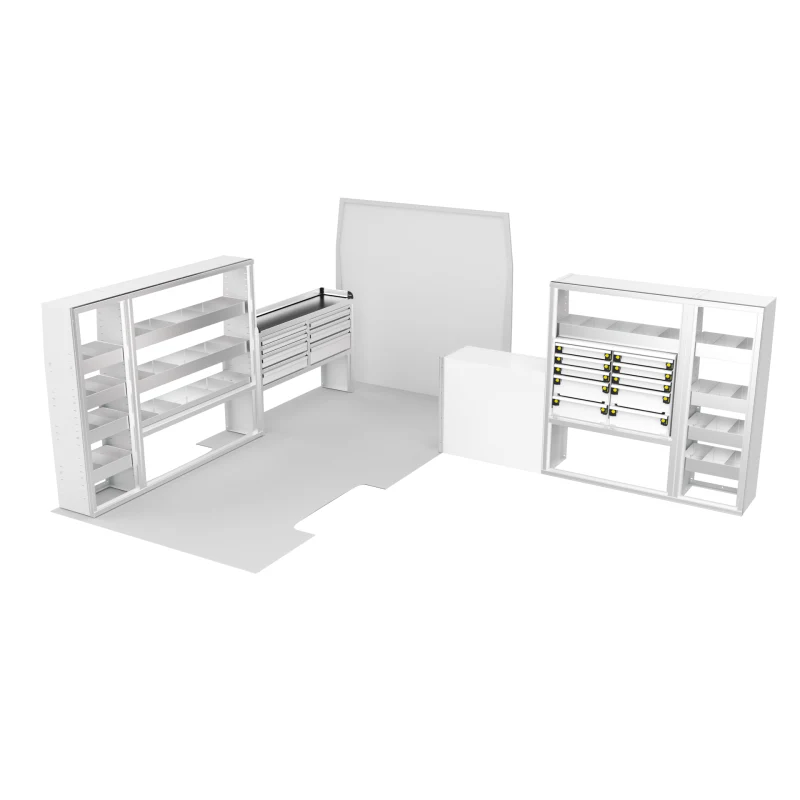

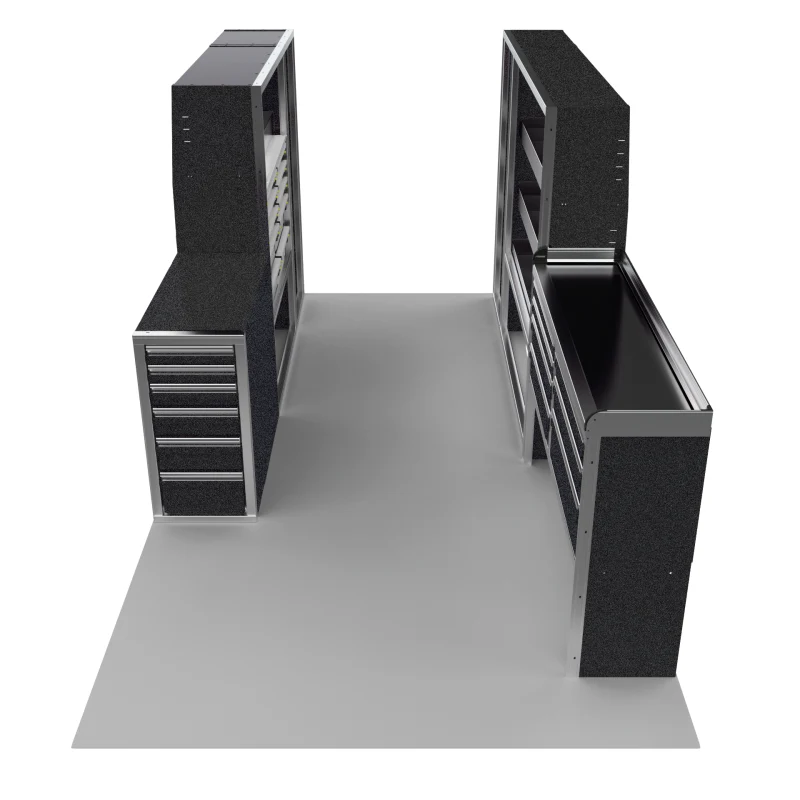

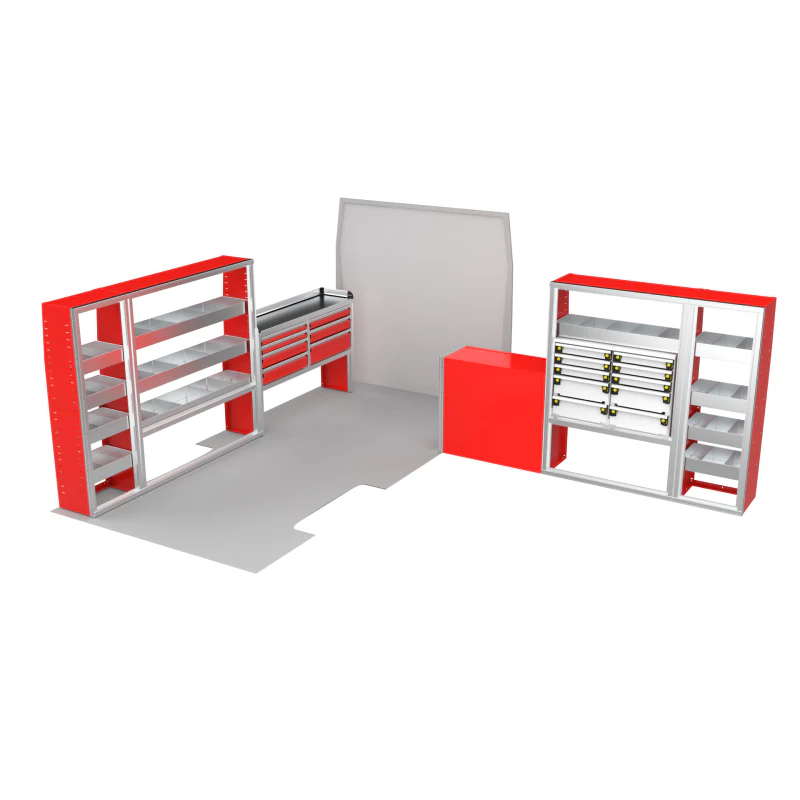

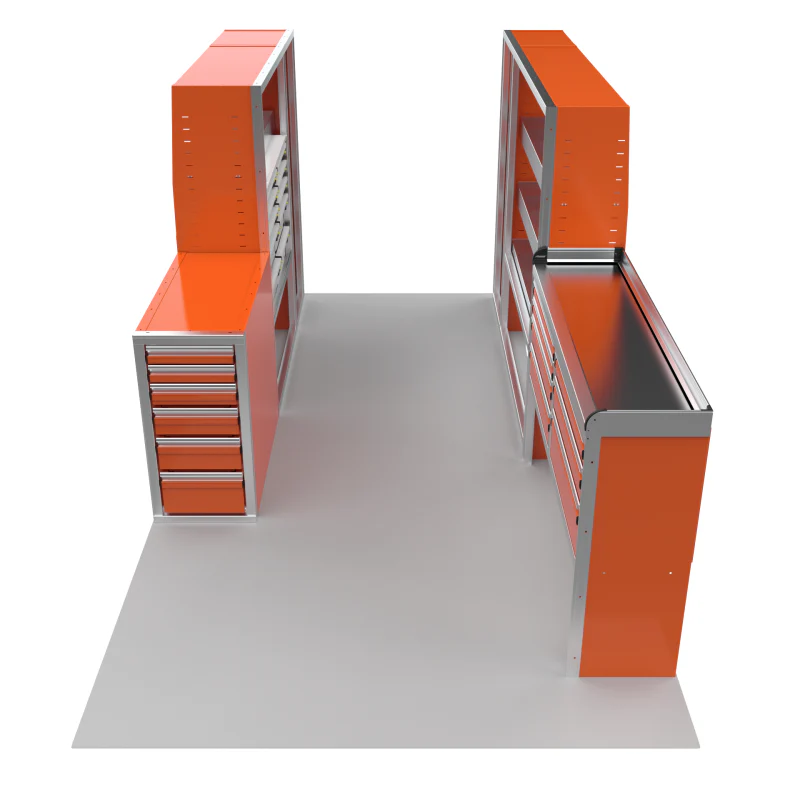

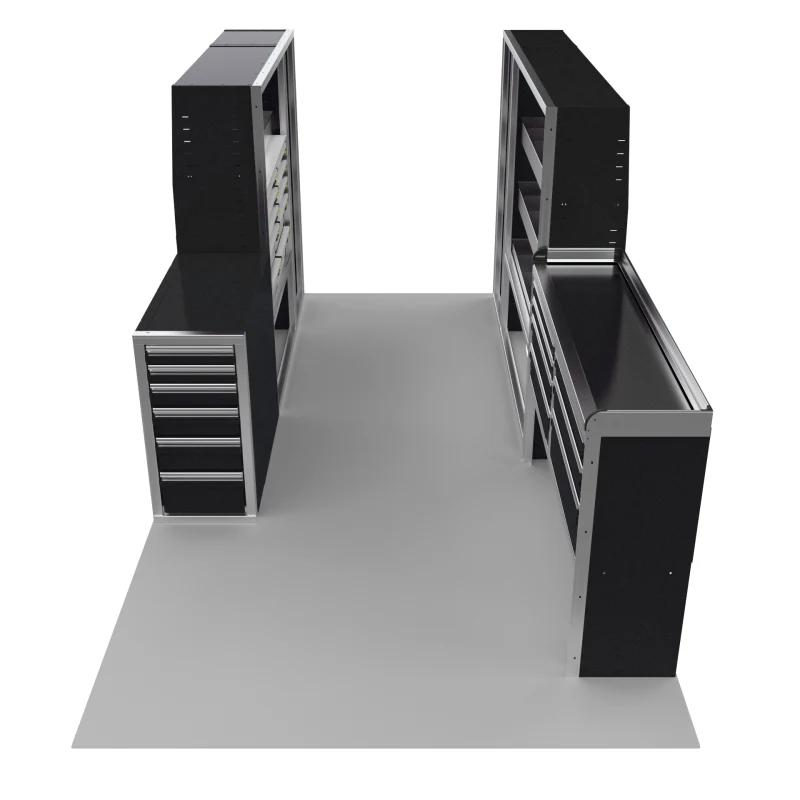

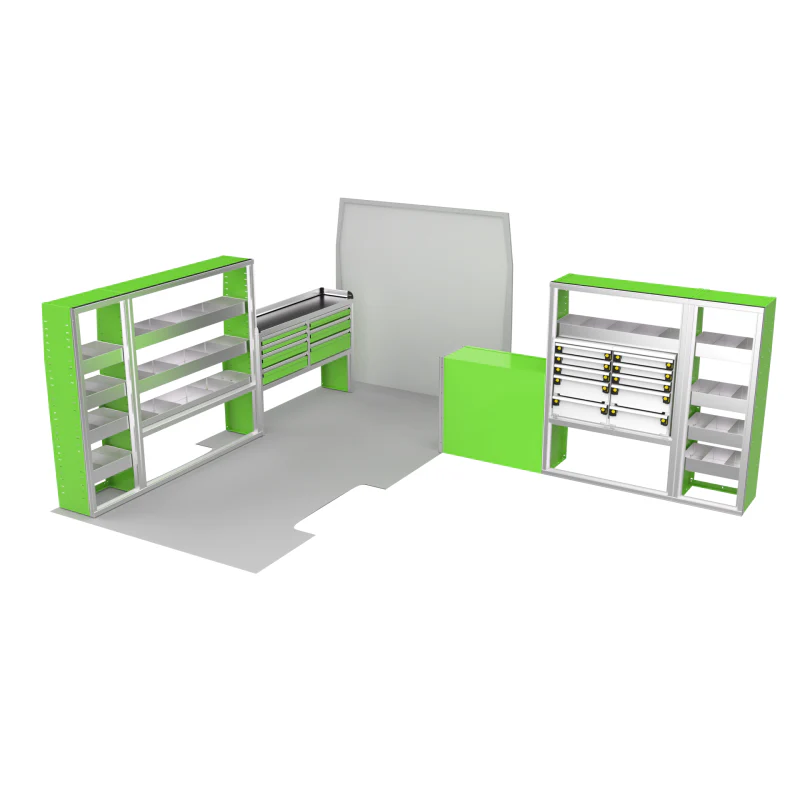

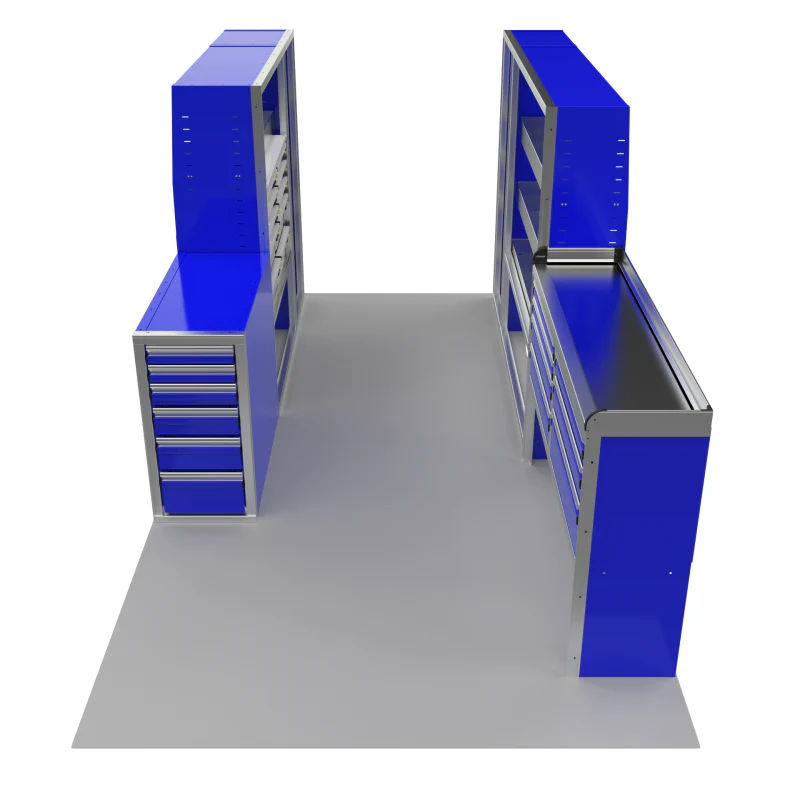

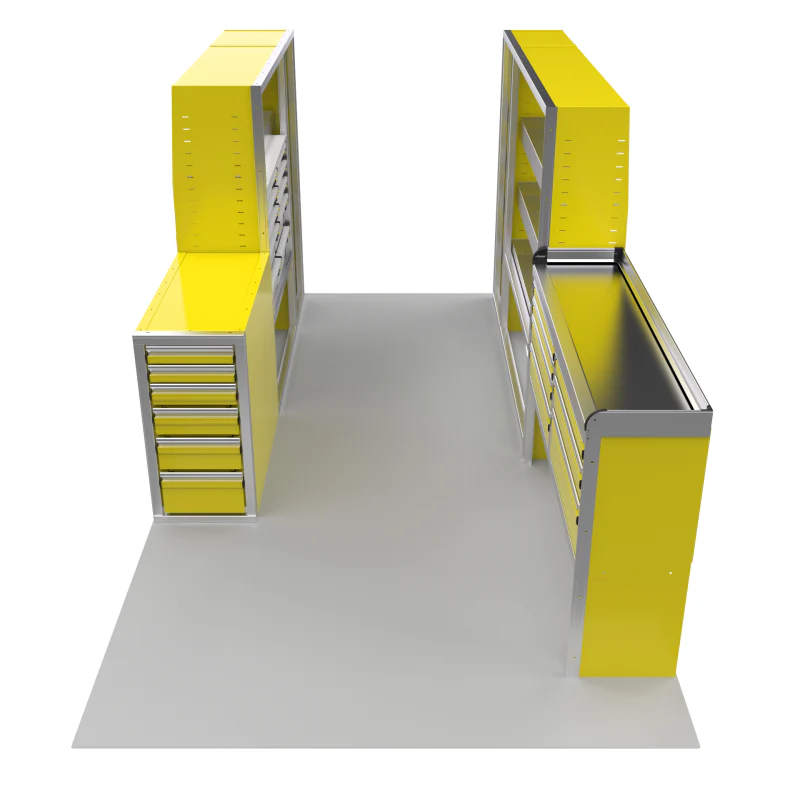

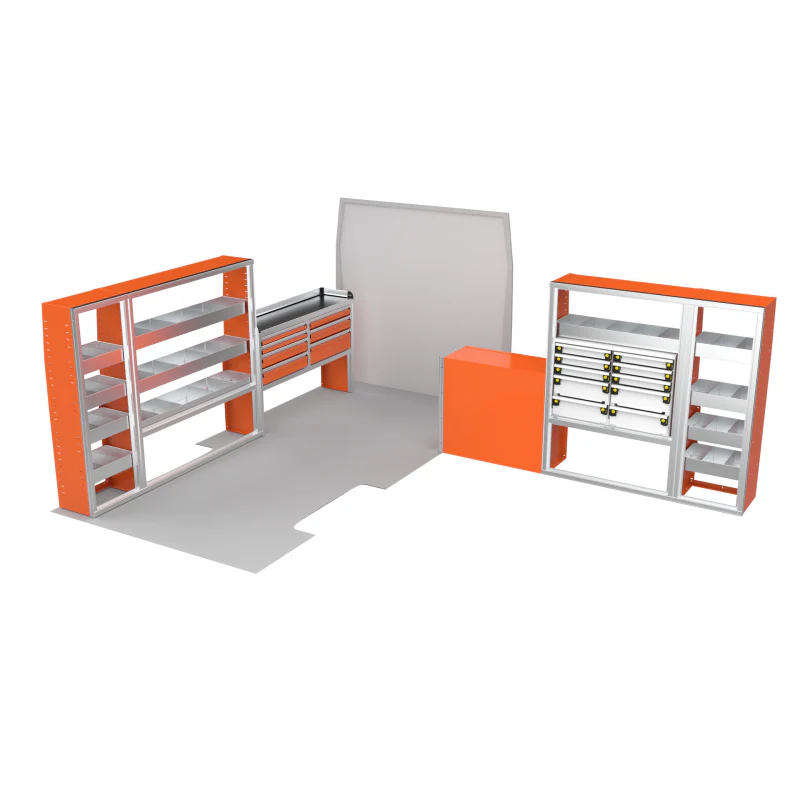

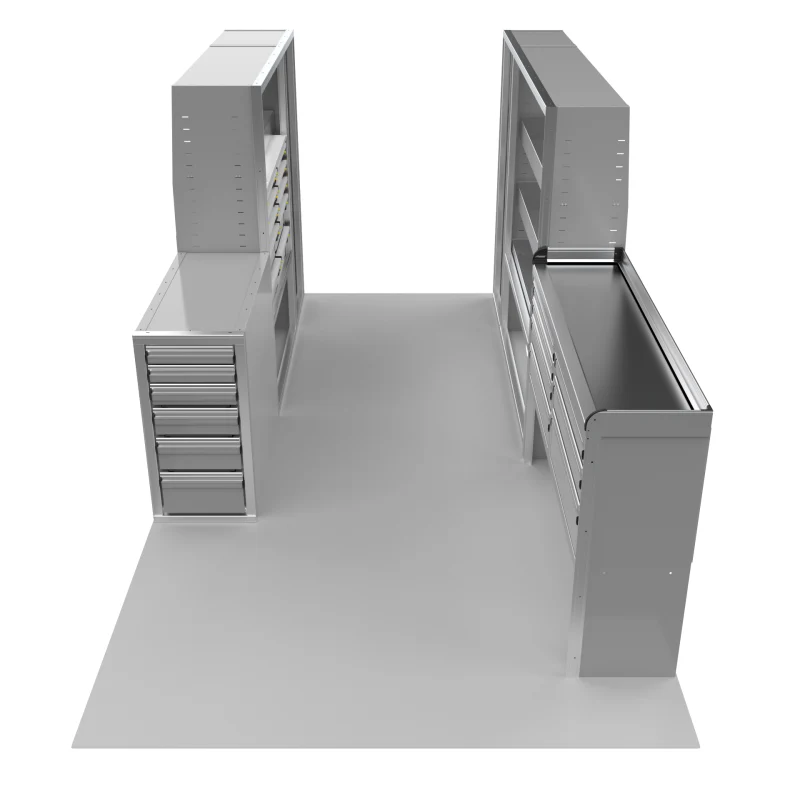

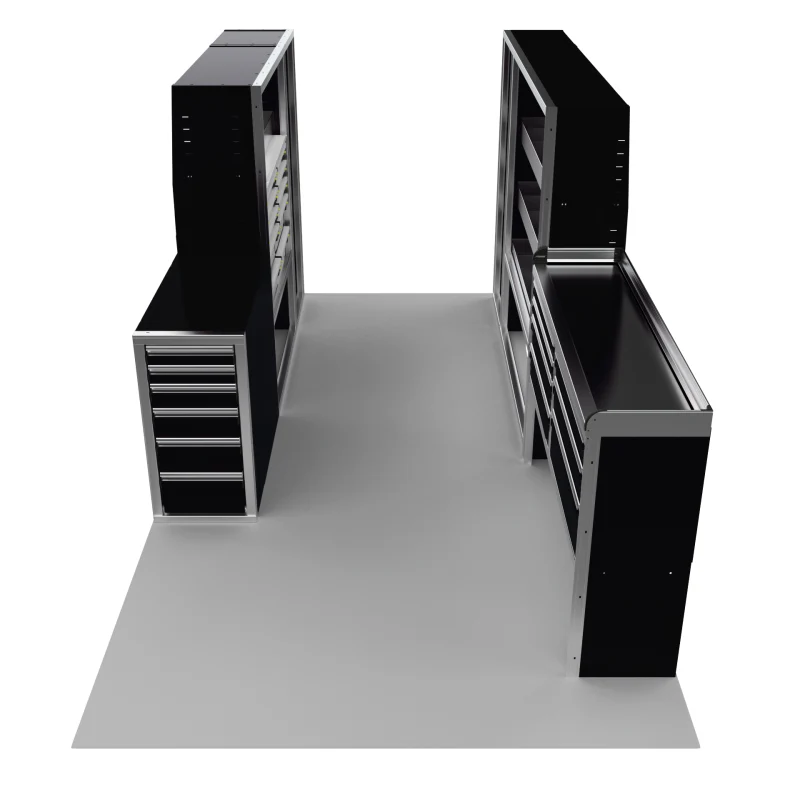

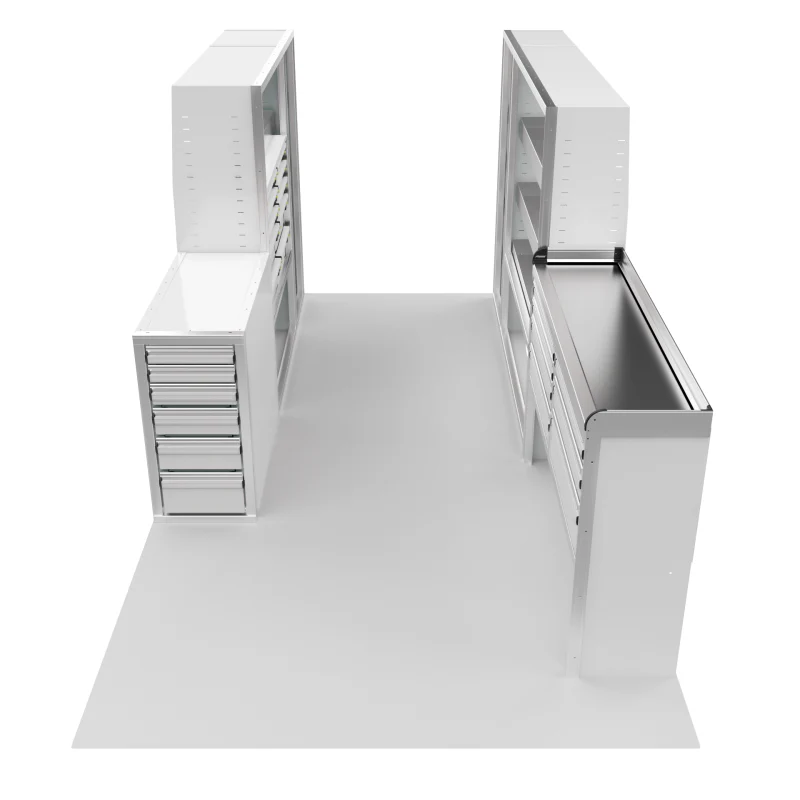

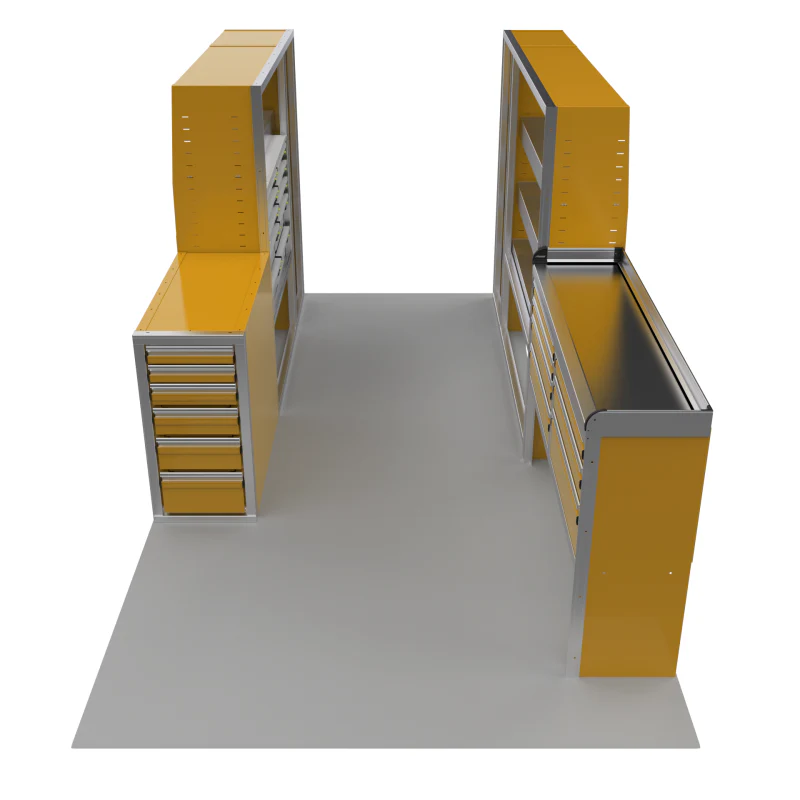

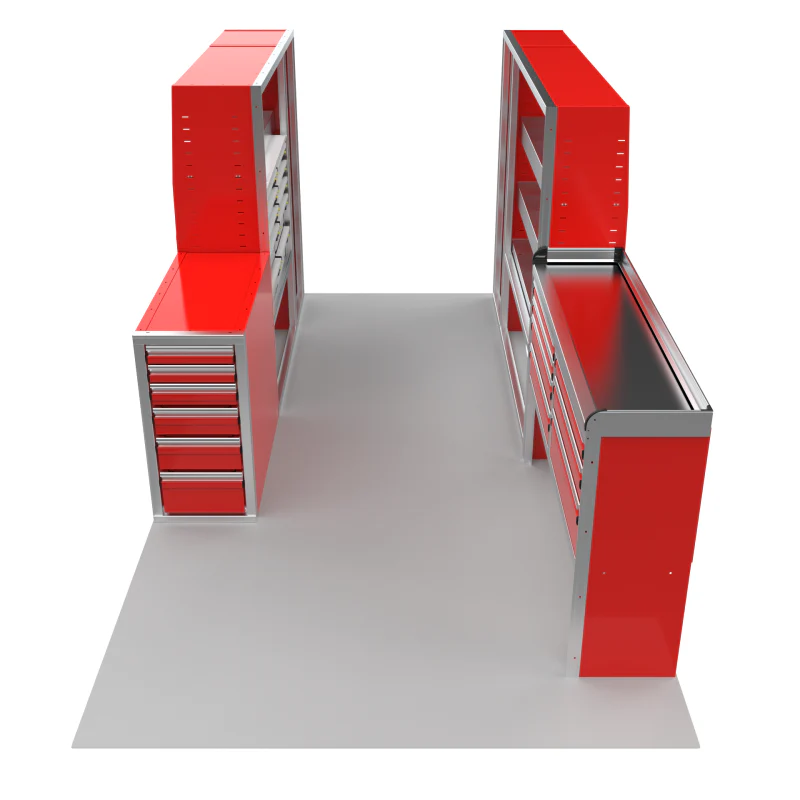

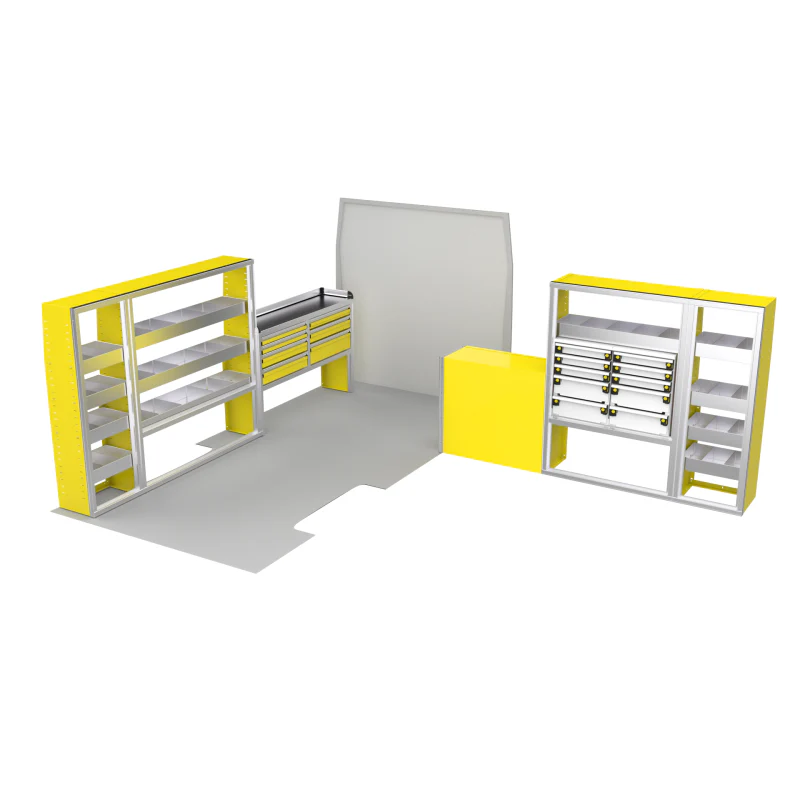

The VanPro Package RPEXT2 combines the RP-300 Shelving Unit, RP-301 Shelving Unit, RP-303 Workbench, RP-304 Drawer Housing, RP-305 Shelving Unit, and RP-306 Shelving Unit to provide a comprehensive, efficient storage and workspace solution for your Ram ProMaster 2500/3500 EXT. This package offers adjustable shelving, MotionGlide technology, secure drawer storage, and a spacious workbench, all built with lightweight, corrosion-resistant aluminum for maximum durability and efficiency. Ideal for work vans, this package ensures flexibility, reliable organization, and long-lasting performance.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
RP-303 Workbench	Quantity: 1 Location: — Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
RP-300	Quantity: 1 Location: — Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
RP-305	Quantity: 1 Location: — Overall Size: 20"W x 60"H x 14"D Frame Size: 20"W x 60"H x 14"D
RP-301 MotionGlide Cabinet	Quantity: 1 Location: — Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
RP-304 Drawer Housing	Quantity: 1 Location: — Overall Size: 16"W x 32"H x 36"D Frame Size: 16"W x 32"H x 36"D
RP-306	Quantity: 1 Location: — Overall Size: 20"W x 60"H x 16"D Frame Size: 20"W x 60"H x 16"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (RP-303)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (RP-304)
• Delete Back Panel in RP-303 Opening 2
• Custom Deep Shelves (RP-300: 4 dividers, RP-305/RP-306: 2 dividers)
• Two MG-9 Units Mounted on Fixed Shelf (RP-301)
• ProMaster Profile

Opening Details

Model/Opening	Details
RP-303 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-303 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
RP-303 - Opening 2	Size: 53"W x 15.5"H EMPTY Additional Option: Delete Back Panel
RP-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
RP-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
RP-305 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 12"D) Custom Deep Shelves with 2 Dividers
RP-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
RP-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
RP-304 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] Slide Type: Medium Duty 34" (x6) Inside Drawer Dim: 8.53"W x 33.671"D Bottom Space: 0.952"
RP-306 - Single Opening	Size: 17"W x 57"H EMPTY Adjustable Shelves: 4 (18.758"W x 14"D) Custom Deep Shelves with 2 Dividers

Vehicle Fitment

Product Application	Work Van
Vehicle	RAM ProMaster
Model Year	2014-2025
Wheelbase	159"
Cargo Length	Extended
Cargo Roof Height	High, Super High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
