CTech VanPro Drawer Housing FT305 Model FT-305

CTech VanPro Drawer Housing FT305 Model FT-305

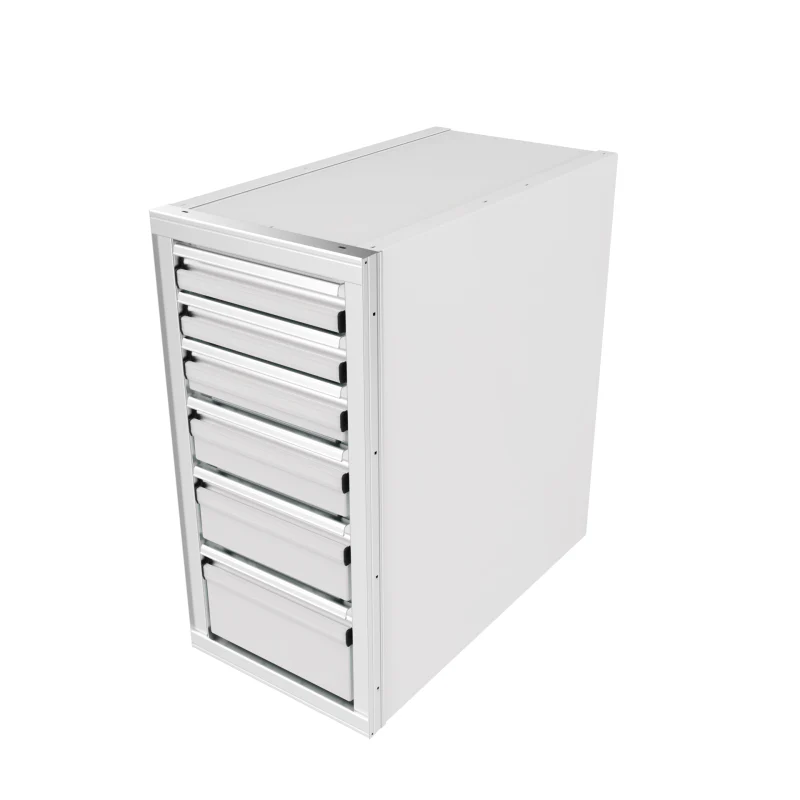

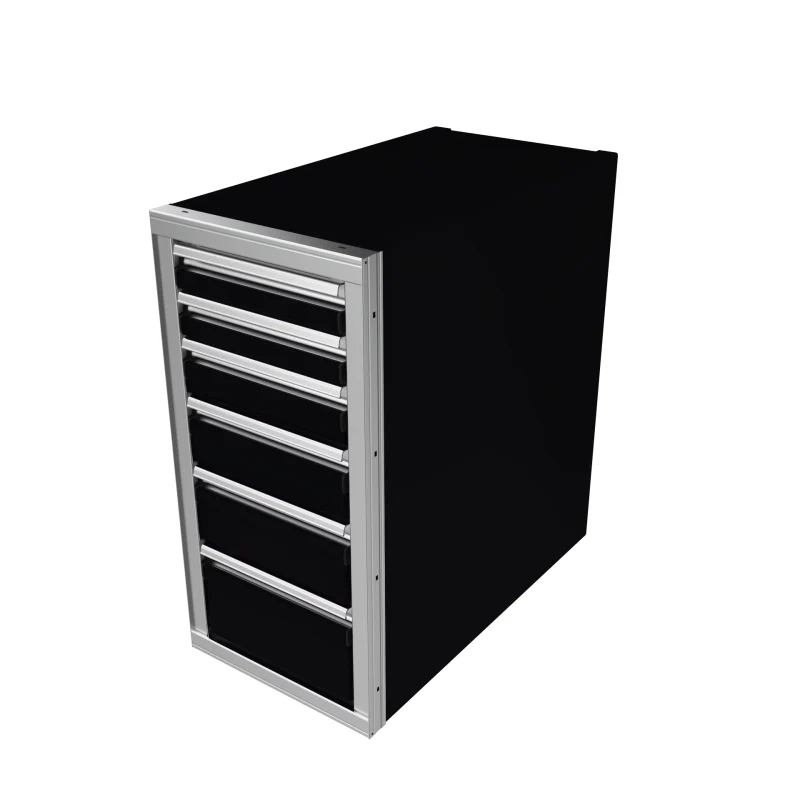

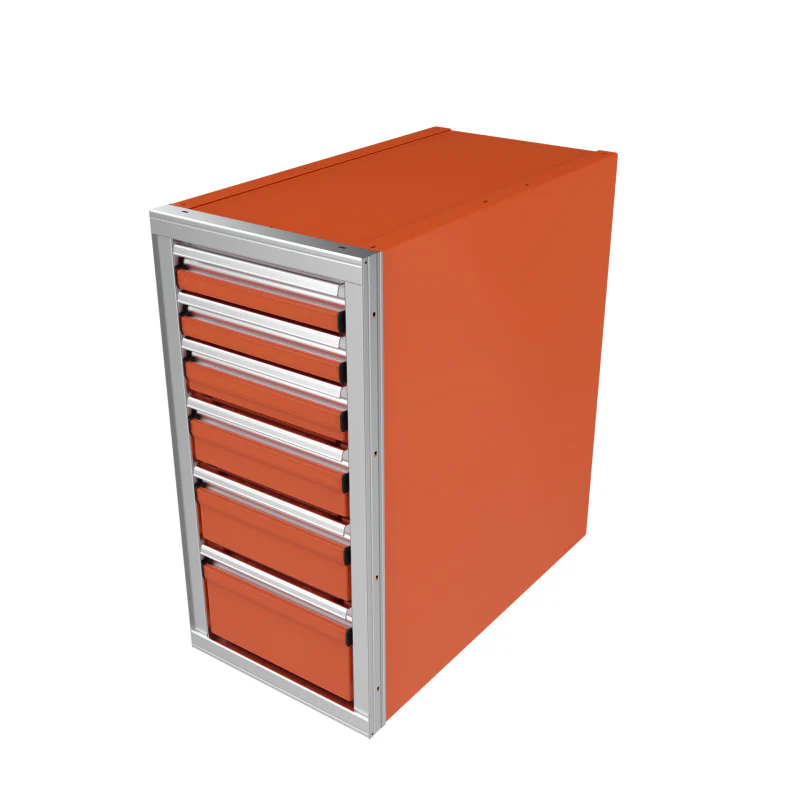

A self-contained drawer unit built for hardworking vans. Keep your essentials secure and sorted with the VanPro FT305 Drawer Housing unit. Designed for Ford Transit 150/250/350 models, it features multiple deep drawers in a compact 16"W x 32"H x 30"D body—providing protected storage for tools, hardware, and sensitive materials. Built to withstand the demands of the road.

Features:

• Lightweight

Cabinet Overview

Model/Part	Details
FT-305	Quantity: 1 Location: — Overall Size: 16"W x 32"H x 30"D Frame Size: 16"W x 32"H x 30"D

Cabinet Options

• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel
• Bottom Rail
• Floor Panel
• Top Panel

Opening Details

Model/Opening	Details
FT-305 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] [Sep:4] [STS] Divider Clip Kit: Qty 4 Slide Type: Medium Duty 28" (x6) Inside Drawer Dim: 8.53"W x 27.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	Ford Transit
Model Year	2014-2025
Wheelbase	148"
Cargo Length	Standard, Extended
Cargo Roof Height	Medium, High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
